See the ORICO dock in action
Official product video
ORICO · DPM2P9-V1
One dock.
Every connection.
A premium 10-in-1 USB-C dock for 10Gbps data, up to 4K60 display, Gigabit Ethernet, memory cards and your own compatible M.2 SSD — with integrated cooling.
10% off your first order with code WELCOME10.
Secure checkout• UK delivery only• 30-day returns
SSD and power adapter not included. Delivery within the United Kingdom only.
Designed to simplify your desk
Too many adapters? Bring your setup together.
Turn one compatible USB-C connection into a cleaner workstation with high-speed data, display output, wired networking, card readers and room for compatible M.2 storage.
More of what your setup needs.
Up to 10Gbps data
10Gbps USB-A and USB-C data ports, plus two 5Gbps USB-A.
Up to 4K @ 60Hz HDMI
Drive a compatible 4K display from one USB-C connection.
Gigabit Ethernet
Wired RJ45 networking up to 1000Mbps.
M.2 storage interface
Room for a compatible M.2 drive — SSD sold separately.
SD + microSD
SD 3.0 and TF/microSD 3.0 card readers.
Integrated cooling fan
Fan, heatsink fin and thermal silicone around the storage bay.
Maximum speeds and display capabilities depend on the connected host, cable, display, storage device and power supply.

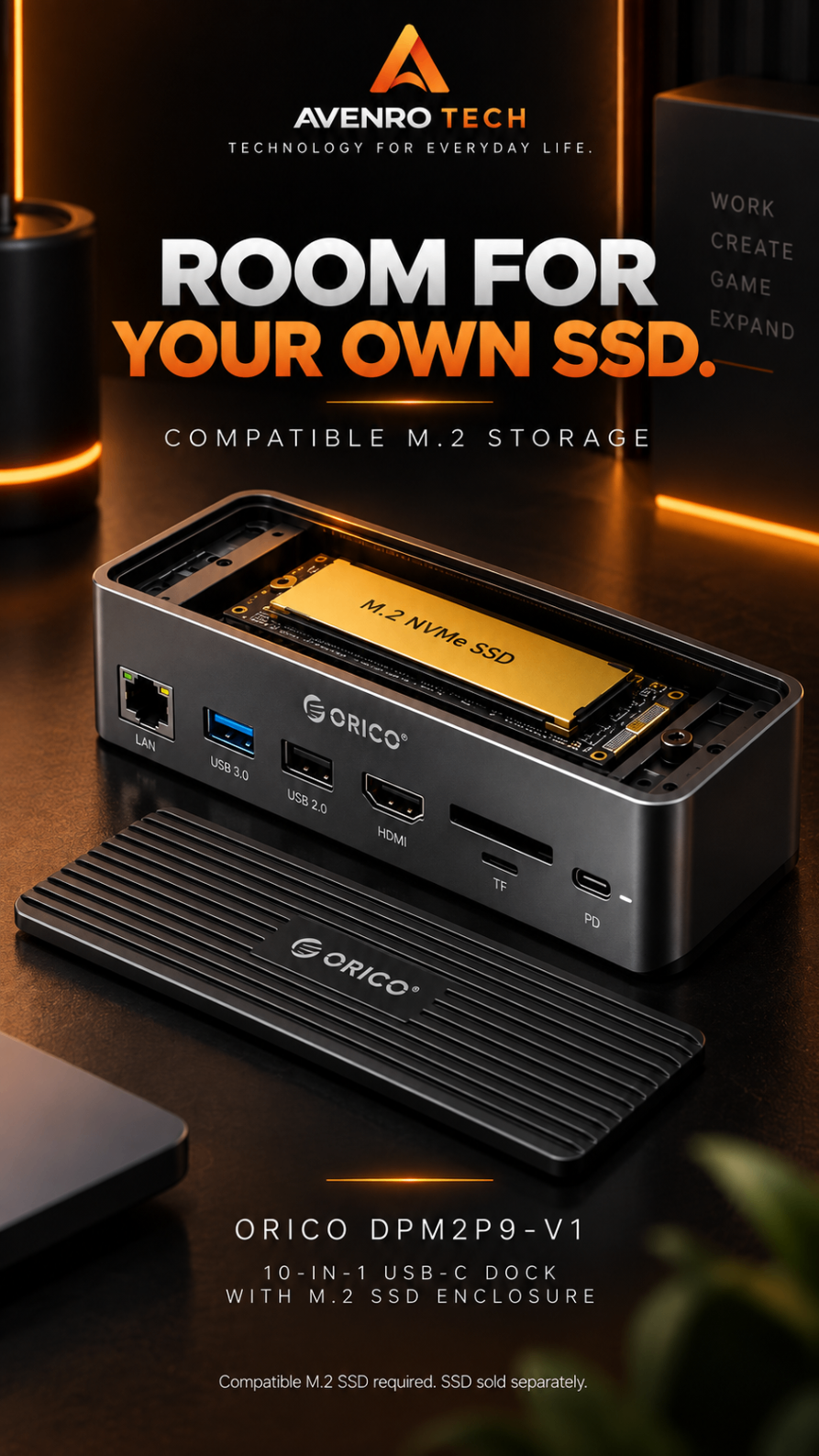

Add the storage your workflow needs.
The built-in M.2 interface supports compatible M-Key and B&M-Key drives in 2230, 2242, 2260 and 2280 sizes, with manufacturer-listed capacity support up to 8TB.
SSD sold separately
Every connection, at a glance.
Type-C power
Up to 100W
USB-A
10Gbps
USB-C data
10Gbps
PC IN
USB-C host
2× USB-A
5Gbps
HDMI
Up to 4K60
RJ45
Gigabit
SD
SD 3.0
TF / microSD
3.0
M.2
NVMe/NGFF
Check compatibility before you order.
Host
Compatible USB-C devices that support the functions you need.
M.2 drive
M-Key / B&M-Key · 2230 / 2242 / 2260 / 2280 · Up to 8TB
Systems
Windows 8/10/above · macOS · Android · Linux
USB-C capabilities vary by device. Not every USB-C port supports video output, power delivery or every data protocol.
Technical specification
- Model
- ORICO-DPM2P9-V1
- Colour
- Black
- Material
- Aluminium alloy + ABS
- Transfer
- Up to 10Gbps
- HDMI
- Up to 4K @ 60Hz
- Ethernet
- Up to 1000Mbps
- USB-A
- 1× 10Gbps + 2× 5Gbps
- USB-C data
- 1× up to 10Gbps
- USB-C host
- PC IN
- USB-C power
- Up to 100W (power adapter not included)
- Cards
- SD 3.0 + TF/microSD 3.0
- M.2
- NVMe/NGFF, M-Key / B&M-Key
- SSD sizes
- 2230 / 2242 / 2260 / 2280
- SSD capacity
- Up to 8TB (SSD not included)
- Dimensions
- 135 × 65 × 29.2 mm
- Systems
- Windows 8/10/above, macOS, Android, Linux
- Listing reference
- 1005012078490770
What's in the box
- ORICO dock
- USB-C to USB-C 0.5m data cable
- Heatsink fin
- Heat dissipation silicone
- Plastic plug
- Storage box
- SSD and power adapter are not listed as included.
ORICO DPM2P9-V1
In stock- Secure checkout
- UK delivery only
- 30-day returns
- Helpful support
Frequently asked
Is an SSD included?
No. The manufacturer package list does not include an SSD.
Which M.2 sizes are supported?
2230, 2242, 2260 and 2280, with M-Key or B&M-Key drives.
What is the maximum SSD capacity?
ORICO lists support for drives up to 8TB.
Does it really do 4K at 60Hz?
HDMI is specified up to 4K @ 60Hz on compatible host, display and cable combinations.
Is a 100W charger included?
No charger is listed in the package. The dock has a Type-C power interface specified up to 100W from a compatible power supply.
Which systems are supported?
ORICO lists Windows 8/10/above, macOS, Android and Linux.
Will it work with every USB-C laptop?
Not necessarily. USB-C features vary by device — check that your port supports video output, data and power delivery.
Delivery within the United Kingdom
One dock. More done.
£80.99
In stock · UK only
